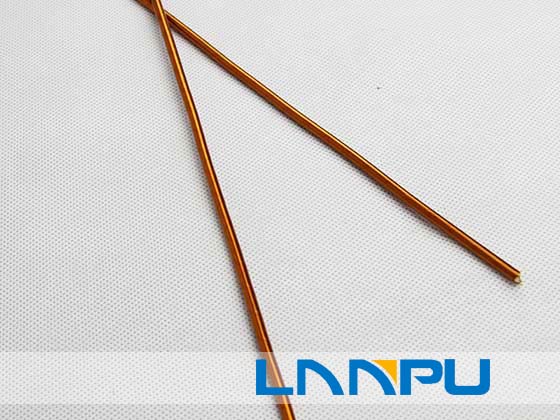

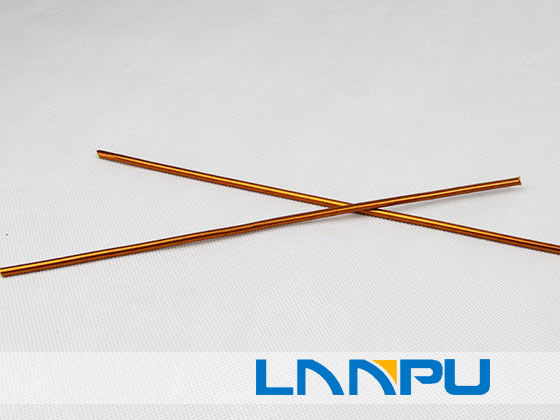

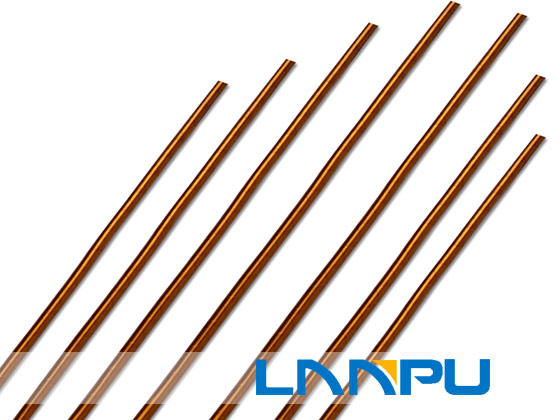

Kaption Copper Wire

Parameter

Conductor: copper

Insulation: F46+Polyimide film

Diameter Range (mm): round: 1.5-4.0 Flat: a: 1-5.6 b: 3-16

Temp Class: 240C

Standard: NEMA, GB, IEC

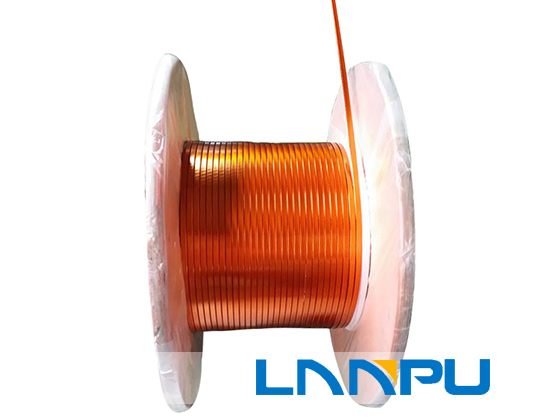

Package: 50kg/100kg/150kg wooden spool

Apppcation: used in aerospace, submersible motor and high voltage coil, wind turbines, micro-electronics and other fields.

kapton copper wire china kapton copper wire kapton copper wire for sale kapton copper wire manufacturekapton copper wire supplierkapton copper wire company

This product is made of wrapping polyimide fluorine-46 composite film in high-quality round copper wire, then through high heat sintering. its temperature index up to 290 ℃, voltage level 7200 V/min. the product has excellent electrical, mechanical strength and chemical resistance, can be widely used in harsh working condition of motors, electric appliance. Using this product can effectively reduce the size and weight of the same power motors. This product can be used in aerospace, submersible motor and high voltage coil, wind turbines , microelectronics and other fields. Special processing technology make the product has high mechanical properties and stronger overload capacity and heat-resistant properties, suitable for large and medium-sized motor coil and winding of electrical appliances. This product is also suitable for H-class and below submersible motors and similar oil-filled motor with a special winding wire and insulated wire core of submersible oil pump.



Bare Diameter

Overall Diameter

Resistance

SIZE

OD”

min

OD

min

OD”

max

OD

max

OD

min

OD

max

Rmax

Ω/m

Rmin

Ω/m

6.00

0.1602

4.070

0.1638

4.160

4.310

4.390

0.001322

0.001271

6.50

0.1516

3.850

0.1547

3.930

4.080

4.170

0.001478

0.001422

7.00

0.1429

3.630

0.1457

3.701

3.850

3.950

0.001666

0.001603

7.50

0.1348

3.424

0.1375

3.493

3.650

3.750

0.001864

0.001792

8.00

0.1272

3.231

0.1298

3.297

3.450

3.550

0.002103

0.002019

8.25

0.1237

3.141

0.1262

3.204

3.354

3.461

0.002225

0.002138

8.50

0.1201

3.051

0.1225

3.112

3.270

3.370

0.002355

0.002260

9.00

0.1133

2.878

0.1155

2.934

3.090

3.200

0.002650

0.002550

9.50

0.1069

2.715

0.1091

2.771

2.940

3.050

0.002955

0.002843

10.00

0.1009

2.563

0.1029

2.614

2.770

2.880

0.003342

0.003213

10.50

0.0952

2.418

0.0971

2.466

2.630

2.750

0.003731

0.003586

11.00

0.0898

2.281

0.0918

2.332

2.480

2.600

0.004219

0.004055

11.50

0.0848

2.154

0.0865

2.197

2.360

2.480

0.004720

0.004526

12.00

0.0800

2.032

0.0816

2.073

2.230

2.350

0.005316

0.005110

12.50

0.0755

1.918

0.0770

1.956

2.106

2.238

0.005969

0.005739

13.00

0.0712

1.808

0.0727

1.847

2.000

2.130

0.006693

0.006437

13.50

0.0672

1.707

0.0686

1.742

1.892

2.027

0.007513

0.007229

14.00

0.0634

1.610

0.0647

1.643

1.800

1.940

0.008385

0.008078

14.50

0.0599

1.521

0.0611

1.552

1.702

1.841

0.009394

0.009058

used in aerospace, submersible motor and high voltage coil, wind turbines, micro-electronics and other fields.
