Diameter Range (mm): 0.025-4.5
Temp Class: 130, 155, 180, 200, 220
Standard: IEC,NEMA,GB,JIS
UL NO: E345303
Bobbin: PT-4 PT-10 PT-25 PT-30 PT-60 PT-90 PT-200 Wooden Bobbin or according to customer requirements
Email:[email protected]
Dry-type transformers and oil-immersed transformers, motors, generators and welding, refrigeration compressors, sealed motor, explosion-proof motors, electric motors, solenoids, high temperature sealing electrical, instrumentation, home appliances, rectifiers and other deflection coil and other winding the types of electrical equipment
|
Enameled Type |
Polyester or Solderable Polyurethane |
Modified Polyester or Solderable Polyurethane |
polyester-imide Or Solderable Polyurethane |
Polyamide-imide |
polyester-imide /Polyamide-imide |
|
Products type |
PEW/130 UEW/130 |
PEW/155 UEW/155 |
EIW/180 UEW/180 |
EI/AIW/200 |
EIW(EI/AIW)/220 |
|
Temp Class |
130 |
155 |
180 |
200 |
220 |
|
Insulation Grade |
Grade1/Grade2/ Grade3 |
Grade1/Grade2/ Grade3 |
Grade1/Grade2/ Grade3 |
Grade1/Grade2/ Grade3 |
Grade1/Grade2/ Grade3 |
|
Standard |
IEC,NEMA,JIS,GB or according to customers’ requirements |
||||

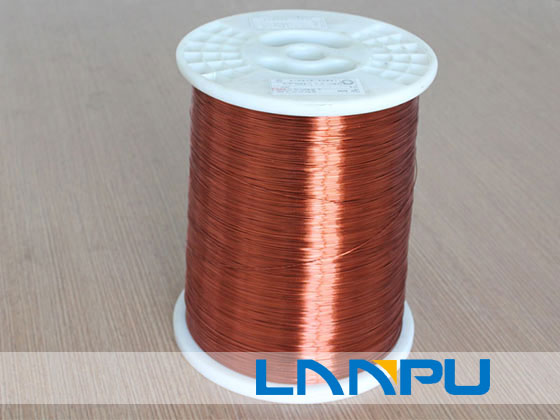

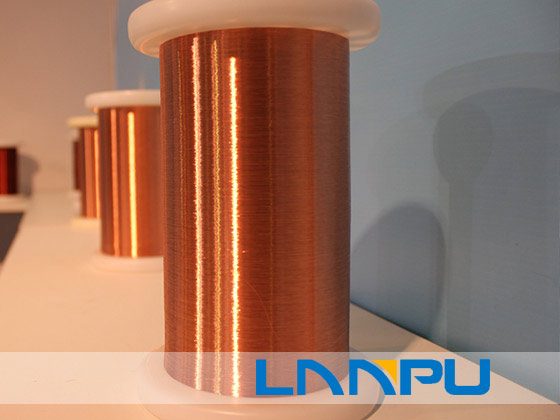

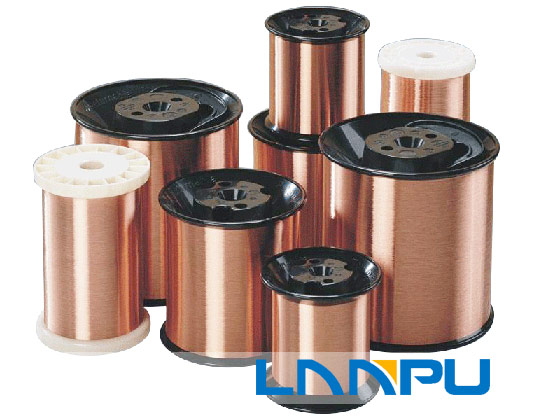

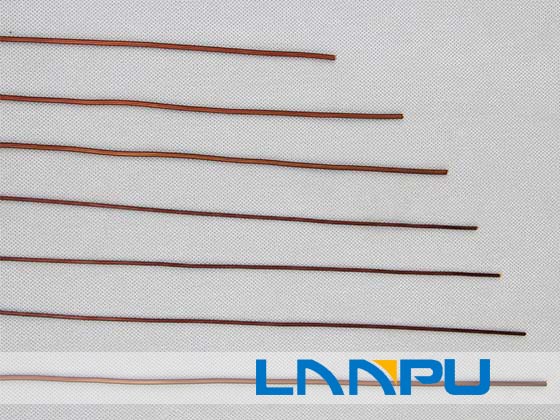

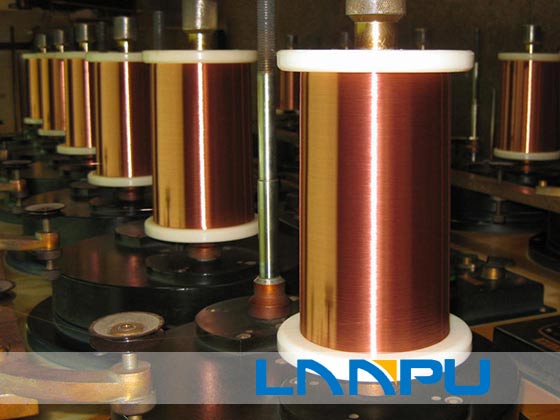

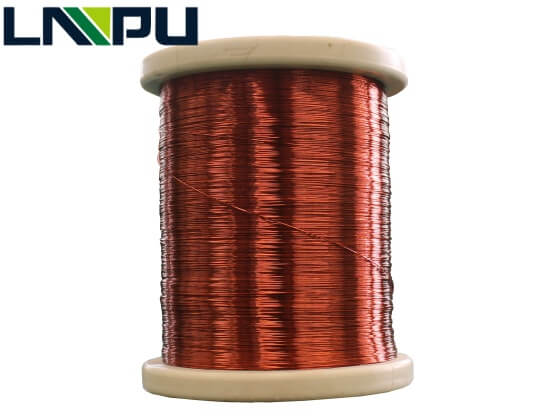

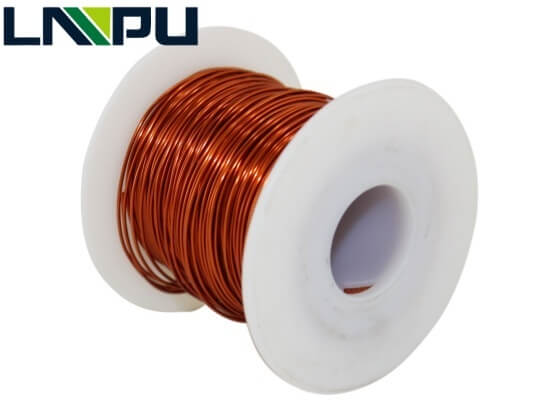

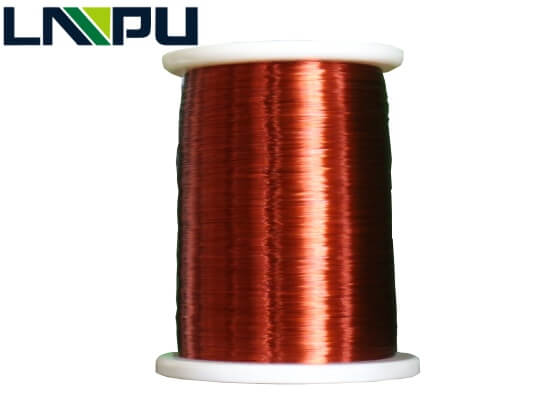

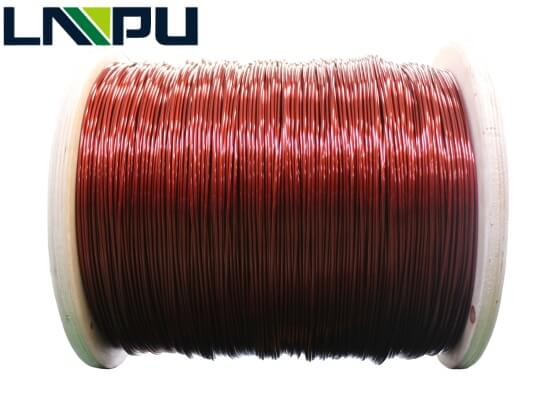

ENAMELED ROUND COPPER WIRE
