Factory price paper covered enameled copper wire transformer coil

The 130L thin paint film polyester enameled round copper wire (QZ-1/130) belongs to the enameled wire under the winding wire classification.

Model and name
QZ-1/130, 130L thin paint film polyester enamelled round copper wire.

The acetal enameled wire has two thermal grades: 105 and 120. It has good mechanical strength, adhesion, resistance to transformer oil and refrigerant, and only a small amount is used for windings of oil-immersed transformers and oil-filled motors.

Polyesterimide/polyamide composite enameled wire, thermal class 180. This product has good thermal shock resistance, high softening and breakdown temperature, excellent mechanical strength, and good solvent and refrigerant resistance. It is used in dry-type power transformers, etc. Winding.

Conductor: Copper
Certificate: UL
Dimension: Thickness(a)/Width(b):0.45-6mm
Insulation Thickness: G1,G2 or single build, heavy build
Thermal Class: 120(Class E), 180(Class H), 200(Class C), 220(Class C+), 240(Class HC)
Packing:30kg-150kg ply-wood spool(250*400 / 250*500/ 250*600/ 250*730)

Model
QAN-2B, heat-bonded or solvent-bonded thick film polyurethane enamelled round copper wire.

Use characteristics
1. Under high frequency conditions, the dielectric loss tangent value is small.
2. It can be welded directly without scraping off the paint film.
3. Good colorability and can be made into enameled wires of different colors.

enamelled copper wire specifications is different in different standards, like the 25 awg conversion to 0.455mm. LP Industry also produce the awg, swg, and GB magnet wire. We have the professional experts to design and guide the manufacturing process.
Round type: 0.016-7mm
Rectangular type: A> 0.8–8mm, B> 2-22mm

Product Name£ºSwg Enamel Coated Copper Wire
Type: round and rectangular type
Round Dimension:5SWG – 44SWG
Conductor Material£ºCopper
Application£ºused for transformers, inductors, motors, generators, dry type transformer, Cast Resin Transformers
Certificate£ºUL,RoHS
Insulation Materilas£ºPVF, EIW, AI-EIW, AIW, etc.
Standards: IEC, NEMA, GB, JIS
Packing: PT15 PT-25 PT -30 PT-60 PT-200.
Spool: plastic spool or wooden spool

Round Enameled Wire can be designed in 0.016-7mm, why choose the round enameled wire used for your electrical equipment and other electric field. List the 4 characteristics of enameled copper wire.

Product Name£ºcopper winding wire sizes 0.75mm
Type: round and rectangular copper wire
Round Dimension:0.75mm
Conductor Material£ºCopper
Application£ºused for transformers, inductors, motors, generators, dry type transformer, Cast Resin Transformers
Certificate£ºUL,RoHS
Insulation Materilas£ºUEW, QZ, QZY, EIW, etc.
Thermal Class:105 ¡ãC, 120 ¡ãC, 140 ¡ãC, 155 ¡ãC, 180 ¡ãC, 200 ¡ãC, 220 ¡ãC, 240 ¡ãC

Type: Insulated
Conductor Type: Solid
Delivery time: 7-30 Days
Thermal Class: 130-220C
Conductor Material: Copper
Brand Name: LP Magnet Wire
Certification: SGS,UL,ISO9001,ISO4001
Model Number: Insulated AWG 29 Coated Thin wire

Factory Price QA-1 155 0.3mm Enameled Coil Wire For Motor Winding is also called UEW copper winding wire is made by coating heat-resistant insulating varnish on the surface of copper conductors and baking and curing. The main component of the insulating paint film is heat-resistant polyurethane resin.

Thermal Class: 130-220c
Delivery time: 7-30 days
Centification: SGS,UL,RoHS,ISO9001
Standard: GB,IEC,NEMA,JIS
Brand Name: LP magnet wire
Bobbin: PT-4–PT-200

Insulated Nylon Coating Submersible Motor Copper Winding Wire
1.Nylon coated polyurethane enameled copper wire (UEW+NY),
2. Polyester enameled copper wire coated with nylon (PEW+NY),
3. Nylon hot melt enameled copper wire (NFW)
Used for motors and coils, relays, fractional horsepower motors, dry-type transformers and sealed coils.

Thermal Class: 130-220C
Delivery time: 7-30 Days
Brand Name: LP Magnet Wire
Diameter: 0.025mm–4.6mm
Certification: SGS,UL,ISO9001,ISO4001
Insulation: PEW, PIW, EIW, AIW, EI/AIW

Copper Magnet Wire is composed of composition, conductive core and electrical insulation. Types Of Copper Magnet Wire is divided into UEW, EIW, PE and PETV according to electrical insulation materials. and copper enameled wire also divided into different types in accordance with its performance and insulation build, like ceramic wires and fiberglass covered wires.

Copper Magnet Wire Manufacturing Process includes important three steps – enameling, winding and Inorganic insulated wires. Mainly introduce the method to ensure the quality of copper enameled wire.

High Thermal Class Motor Winding Awg 14 Enameled Copper Wire is a new type of electromagnetic wire that uses copper as the inner conductor. Its characteristics are between copper and aluminum, combining the excellent conductivity of copper and the light weight of aluminum. Copper enameled wire can be used for signal transmission, but it is prone to problems when used for power transmission, and the life of its products will be greatly reduced. In fact, in the use of copper enameled wire, pay attention to the oxidation protection of the cut surface of the lower enameled wire to ensure the effective combination of copper and aluminum, which can be used for a long time.

Bobbin: PT-4–PT-200
Conductor Material: Copper
Brand Name: LP Magnet Wire
Certification: SGS,UL,ISO9001,ISO4001
Temperature class: 130,155,180,200,220
Diameter: round:0.025-4.5mm;flat: a:1-10,b:3-16;square :a(b) 0.4-7mm

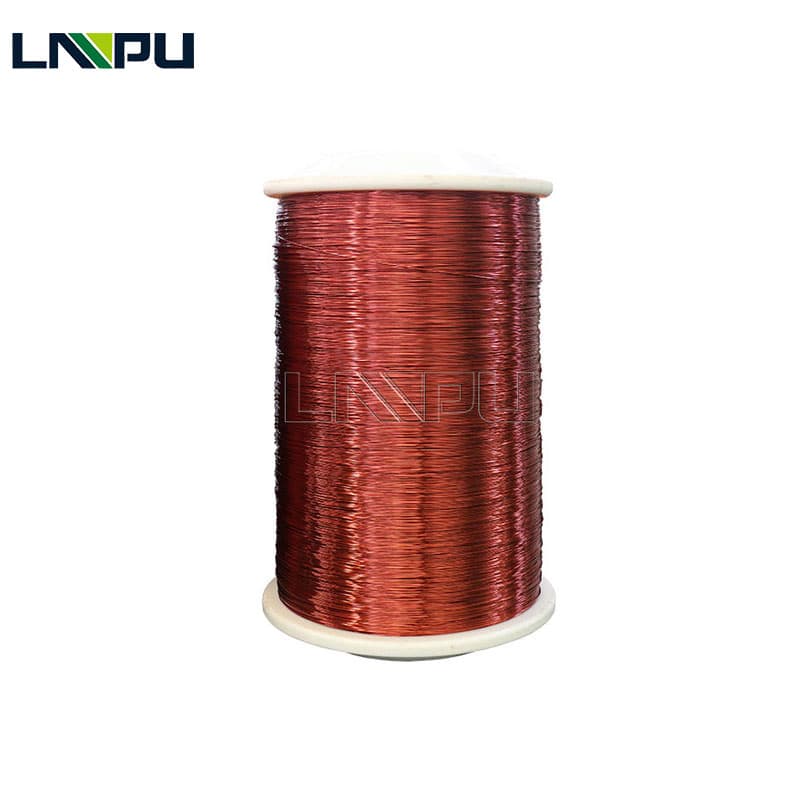

Product Name£º24swg motor winding copper wire
Type: round and rectangular copper wire
Round Dimension:24swg
Conductor Material£ºCopper
Application£ºused for transformers, inductors, motors, generators, dry type transformer, Cast Resin Transformers
Certificate£ºUL,RoHS
Insulation Materilas£ºUEW, QZ, QZY, EIW, etc.
Thermal Class:105 ¡ãC, 120 ¡ãC, 140 ¡ãC, 155 ¡ãC, 180 ¡ãC, 200 ¡ãC, 220 ¡ãC, 240 ¡ãC

Product Name£º1.7mm copper wire
Type: round type or rectangular type
Conductor Material£ºCopper
Enameled copper wire Application£ºused for transformers, inductors, motors, generators, dry type transformer, Cast Resin Transformers
Elctric types: copper cable, welding wire, copper rod, copper strip, etc.
Certificate£ºUL,RoHS

Product Name£º12awg copper wire
Type: round type or rectangular type
Conductor Material£ºCopper
Enameled copper wire Application£ºused for transformers, inductors, motors, generators, dry type transformer, Cast Resin Transformers
Elctric types: copper cable wire, welding wire, copper rod, copper strip, stranded copper wire etc.
Certificate£ºUL,RoHS

Enamelled Copper Wire is useful for building transformers, motors, inductors, hard disk actuators, speakers, electromagnets etc. The enamelled copper wire is electrolytically-refined copper.

There is ‘copperweld’ wire which is an iron core for more strength coated with copper for lower resistance than the iron. This is preferred for antennas for its strength. Purer copper wire will break more often, HOWEVER, I had a really pure (Oxygen free), bare copper wire up for about 5-6 years before it broke, and one with thick plastic insulation for 8-10 years, so it is hard to predict.

Features Of Round Enameled Aluminum Wire uses them in lighting, ceiling fans, computer cases, and even some mobile phones.
It also requires less maintenance because it will not become very brittle after a period of time.

LP Industry is a professional magnet wire manufacturer in China, mainly poduce the round aluminum winding wire and flat aluminum enameled wire. Magnet Wires Manufacturing Process includes extruding wire in suitable size, cleaning wire, wire enamel insulating varnish and winding on spool.

New energy vehicles use a variety of electrical components, such as electric motors, batteries, and inverters, that require enameled copper wire.

Enamelled Rectangular Copper Wire is one of magnet copper wire used for transformers, inductors, motors, generators, dry type transformer, Cast Resin Transformers.
Diameter: thickness: 1-10mm; width:1-22mm

Kapton Insulated Copper Wire For Oil Immersed Transformer has heat resistance, excellent chemical stability, high temperature resistance, toughness, abrasion resistance, flame retardancy, electrical insulation, etc.
Kapton Insulated Copper Wire can be used as enameled wire paint, motor winding impregnating paint, etc. It is of great significance to the electrical industry. Enameled wire is an important material for small and medium-sized motors and electrical equipment. At present, the requirements for heat resistance and thermal stability of enameled wire insulation are particularly high. Because electrical equipment needs to operate at high temperatures. Improve the reliability of overload and increase the unit power of electrical equipment. The application of polyimide in this area can significantly improve the insulation capacity of the motor.

Conductor Type: Solid
Standard: GB IEC JIS NEMA
Brand Name: LP Magnet Wire
Application: transformer,motor,generator
Thermal Class: 105 °C 120 °C 140 °C 155 °C 180 °C 200 °C 220 °C 240 °C

What is the enamelled copper wire? The enamelled copper wire is a wire which has been electrolytically refined; the layer is made from tough polymer materials. As these wires have coating on them they are also called magnet wires.

Introduction
The 130 grade thick paint film polyurethane enameled round copper wire (QB-2/130) belongs to the enameled wire under the winding wire classification.

Use characteristics
1. Under high frequency conditions, the dielectric loss tangent value is small.
2. It can be welded directly without scraping off the paint film.
3. Good colorability and can be made into enameled wires of different colors.
