Nowadays, there are a lot of arguments that aluminum wire is used instead of copper wire in the market, and the aluminum wire motor that matches it also emerges as the times require. What are the differences between copper wire motor and aluminum wire motor? How to identify it? In fact, it is easy to distinguish from the principle of its metal.

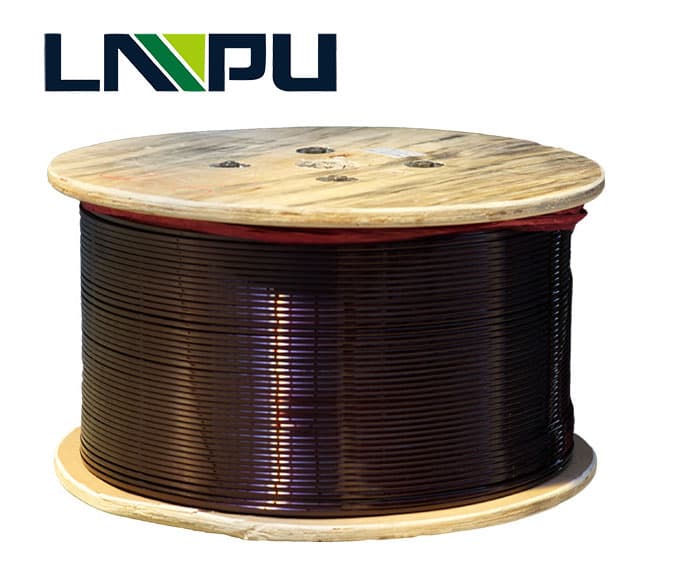

LP Industry is a Insulated Winding Aluminum Wire Manufacturer in China, Mainly produce UL certificate RoHS round aluminum enameled wire and flat aluminum magnet wire used for transformers, inductors, motors, generators, dry type transformer, Cast Resin Transformers. Normaly we also produce the 0.016-7mm enameled round copper wire and flat copper wire.

Conductor Type: Solid
Delivery time: 7-30 Days
Thermal Class: 130-220C
Brand Name: LP Magnet Wire
Bobbin: 30kg/50kgWooden Spool
Insulation: PEW, PIW, EIW, AIW, EI/AIW

Product Name:enameled aluminum wire
Type: flat wire
Round Dimension:0.15Mm-3.2Mm
Conductor Material:Aluminum
Application:used for transformers, inductors, motors, generators, dry type transformer, Cast Resin Transformers
Certificate:UL,RoHS
Insulation Materilas:UEW, QZ, QZY, EIW, etc.
Thermal Class:105¡æ, 120¡æ, 140¡æ, 155¡æ, 180¡æ, 200¡æ, 220¡æ, 240¡æ

Available Diameter: 0.16mm–10mm
Available Diameter: AWG 1- AWG 34
Available Diameter: SWG 1- SWG 38
Thermal Class(℃）: 180 200 220 240
Insulation thickness: G1 G2 G3 G4
Standard: IEC NEMA JIS GB
Certificate: UL SGS
Insulation Brand: Elantas
Package: PT15 — PT270→carton box →Pallet/wooden case,
OR ply-wooden spools→Pallet/Wooden case

High Thermal Solderable polyester-imide Enameled Aluminum wire refers to the electrical round aluminum rod drawn by a certain specification die on the wire, according to customer requirements, with the required temperature index and compatibility insulating paint , Use mold type or felt type paint to paint multiple corresponding insulating paints. After baking treatment, the insulating paint and the wire form a whole.

Enamelled Square Magnet Wire – 0.4*0.4mm–9.1*9.1mm
Enamelled Flat Aluminum Wire – A> 0.8–10mm, B> 2-25mm
Enamelled Round Aluminum Wire – Diameter: 0.15–10.0mm,
Enamelled Flat Copper Wire – a: 0.3-8.0 mm, b：2-25.00 mm
Enamelled Round Copper Wire – Diameter: 0.016 -7.0mm

The electric motor winding definition is, windings in electric motors are wires that are placed within coils, generally enclosed around a coated flexible iron magnetic core to shape magnetic poles while strengthened with the current. Electric machines are available in two fundamental magnet field pole configurations namely salient pole as well as a non-salient pole.

Raw Materials: aluminum conductor and UEW(QA), PEW(QZ), EIW(QZXY), EI/AIW(QZY) Wire Enamel;
Thermal class: 180(Class H), 200(Class C), 220(Class C+), 240(Class HC),
Standard: IEC, NEMA, JIS, GB.
Spool materials: plastic, wooden.
Dimension: 0.16-9.2mm; 1awg – 34 awg
Application: used for transformers, inductors, motors, generators, dry type transformer, Cast Resin Transformers

Width: 20-1900mm
Tolerance: ±1%
Thickness (mm): 0.2-3.0
Standard: ISO9001
Alloy: Is Alloy
Delivery Time: 46-60 days
Brand Name: LP Industry

Product Name£º18 Gauge Aluminum Winding Wire
Type: round and rectangular copper wire
Round Dimension:18 Gauge
Conductor Material£ºAluminum
Application£ºused for transformers, inductors, motors, generators, dry type transformer, Cast Resin Transformers
Certificate£ºUL,RoHS
Insulation Materilas£ºUEW, QZ, QZY, EIW, etc.
Thermal Class:105, 120, 140, 155, 180, 200, 220, 240

Product Name:enameled aluminum wire
Type: round and rectangular aluminum wire
Diension:AWG 31 32 33 34 35 36 38
Conductor Material:aluminum
Application:used for transformers, inductors, motors, generators, dry type transformer, Cast Resin Transformers
Certificate:UL,RoHS
Insulation Materilas:UEW, QZ, QZY, EIW, etc.
Thermal Class:105¡æ, 120¡æ, 140¡æ, 155¡æ, 180¡æ, 200¡æ, 220¡æ, 240¡æ

Non-woven Fabrics Wrapped Aluminum magnet wire Strips is made of oxygen free Aluminum rod or electrical round aluminum rod through a certain specification of the die extrusion or drawing after annealing treatment of the wire, and then on the Aluminum / Aluminum magnet wire strips on the 2-3 layer of polyester film or Non-woven Fabrics electrical insulation layer of the winding wire, the product is good, temperature resistance and other grade 130for B grade, mainly used for air core reactor.

Enameled wire is widely used in winding wires of motors, transformers, inductors, generators, electromagnets, and coils.
In the past, the diameter range of enameled wire usually required was 0.2-2.0mm [AWG12-32], but nowadays, thinner (diameter less than 0.18mm, AWG33) and thicker (diameter greater than 3.0mm, AWG9) are required on the market Enameled wire.

Class 155 Enameled Aluminum Magnet Wire has high heat resistance, high softening breakdown, solvent resistance, high cut through performance, excellent film flexibility, excellent wear resistance and so on.
American UL certified products. Certificate No.: E345303

Product Name£º130/155/180 Degree Aluminum Magnetic Wire
Type: round and rectangular type
Round Dimension:0.2–10.0mm,
Rectangular: A> 0.8–8mm, B> 2-22.5mm
Conductor Material£ºAluminum
Application£ºused for transformers, inductors, motors, generators, dry type transformer, Cast Resin Transformers
Certificate£ºUL,RoHS
Insulation Materilas£ºPVF, EIW, AI-EIW, AIW, etc.
Thermal Class:130, 155, 180

AWG Enameled Aluminum Winding Wire sometimes referred to as ¡°Winding Wire¡± is a copper or aluminum wire that is insulated with a thin film or coating and creates a magnetic field when the wire is would in a coil and power is applied. Magnet wire is used in transformers, generators and a long list of electrical components in almost anything with an electric motor.

Two method to Distinguish High-quality Aluminium Magnet Wire, one is size, the other is looking the appearance.

Model number: Q(ZY/X)-1/180, Q(ZY/X)-2/180 (2EIWN, 1EIWN)
Specification Grid: 0.100-3.000
Heat resistance level: 180 level
Implementation standard: GB/T 6109.12
Performance characteristics: can be used at a working temperature of 180. The product has excellent heat resistance, high thermal shock performance, small surface friction coefficient, and excellent mechanical properties.
Application area:Widely used in motors, electrical appliances, instruments, explosion-proof motors and marine motors with high heat-resistance levels, as well as horizontal windings for color tube deflection. Especially suitable for high-speed winding machine wire coils.

Conductor Type: Solid
Thermal Class: 105℃
Brand Name: LP Magnet Wire
Certifaction: UL, SGS, RoHS, ISO9001
Diameter: Round:2.0-7.0;flat:a:1-10,b:3-35
Model Number: Flat paper covered winding wire
Main Application: Oil-immersed transformer windings

This round enameled wire is made of pure aluminum with insulation,conductors with temperature Class B, F, H, 200˚C, 220˚C are being manufactured by us.
Diameter: 0.16mm to 8.0mm
Standard: IEC60317, NEMA MW 1000

Enameled Aluminum Wire is also called magnet aluminum wire, which is used for transformers, inductors, motors, generators, dry type transformer, Cast Resin Transformers and is composed of aluminum conductor and insulation materials. The aluminum winding wire can be divided into flat type and round type.

EAL-Enameled Aluminum Wire is a main variety of the winding wire, composed by conductor and insulating layer. After the bare wires are annealed soften, then through many times paint, and bake to the finished product. Enameled wire is a main material for the electrical machine, electrical appliance, household applicance, ect. The different enameled wires have different qualities and characteristics, but all possess mechanical property, chemical property ,electrical property, febricity.

Alloy: 1050/ 1060/1070
Temper: H and O
Edge: Round, free from burr, no pits & dents, no scratches, clean and degreased
Thickness Range: 0.2- 3.0mm
Width: 20- 1500mm
Inner Diameter: 300, 400, 500mm

Enameled Aluminum Self Bonding Wire In Hot Air Or Alcohol Type: When the alcohol is added to the product, the wound coils are naturally bonded together and directly formed. Hot air self-adhesive is achieved by blowing hot air on the product coil during the coil winding process to achieve the self-adhesive effect. The temperature of the hot air varies according to different paint film, winding speed, wire diameter and other factors.

1uew 2uew polyuretahne enameled aluminum winding wire is widely used in electrical tools ballasts,automotive electronics,refrigerator and air conditioner compressor motors, television sets, eletric stove, microwave ovens, various transformers, and other kinds of electronic coil motors, electrical appliances.

LP Industry is a professional magnet wire manufacturer in China, mainly poduce the round aluminum winding wire and flat aluminum enameled wire. Magnet Wires Manufacturing Process includes extruding wire in suitable size, cleaning wire, wire enamel insulating varnish and winding on spool.

enameled aluminum wire is composed of aluminum conductor and insulation materials, which is insulated with a thin film or coating and creates a magnetic field when the wire is would in a coil and power is applied. Aluminum Conductor is main type of enameled wire.

Size: 0.16-9.2mm
Delivery time: 7-30 Days
Conductor Type: Solid
Thermal Class: 130C~220C
Brand Name: LP Magnet Wire
