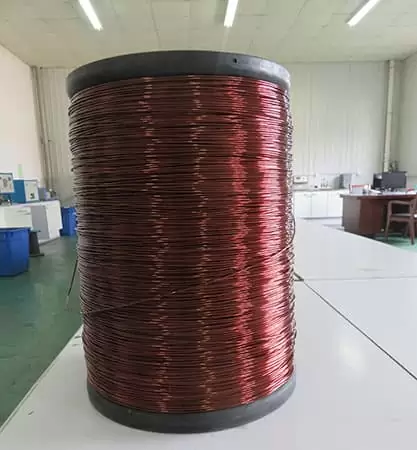

AWG magnet wire enamelled manganin wire

With the continuous progress of society and the continuous development of industry, enameled wire has a very broad application field and has become an indispensable main supporting raw material for products such as motors, electrical appliances, household appliances, electronics, communications and transportation, especially in recent years. The rapid development of household appliances, the advancement of electronic technology, and the rise of the communication industry have provided new space for the application of enameled wires, adjusted the application proportions in various fields, and will also put forward higher and newer technical requirements for enameled wires, and adjust enameled wires. The proportion of the structure. After joining the WTO, the enameled wire industry will face competition in the domestic and international markets, which adds a layer of thinking and pressure to corporate leaders.

¡ñ Conductor resistance. Measure with a conductor resistance tester, and then change to the value at 20¡ãC for comparison.
¡ñInsulation destruction voltage. Twist two enameled wires, apply voltage between the conductors, and judge by the damage voltage of the paint film. This performance is analyzed and judged through two tests of normal state and cold state breakdown voltage.
¡ñPaint film continuity (pinhole). Check the small holes of the paint film with a certain length of the test material. The project is tested by a high-pressure paint film continuity tester.

The motor generally includes a stator and a rotor, with a core and windings on the stator or rotor.
The insulated wire is winded by a certain shape to form a coil. The coil can be a turn or a plurality of turns. A plurality of coils form a group of units and is called a coil group. A combination of a plurality of coils or coil groups constituting one phase or the entire electromagnetic circuit becomes a winding .

Enameled wire is a main type of winding wire. It consists of a conductor and an insulating layer. After the bare wire is softened by annealing, it is painted and baked many times. However, it is not easy to produce products that not only meet the requirements of the standard, but also meet the requirements of customers. It is affected by the quality of raw materials, process parameters, production equipment, environment and other factors. Therefore, the quality characteristics of various enameled wires are different, but they all have Mechanical properties, chemical properties, electrical properties, and thermal properties are four major properties.

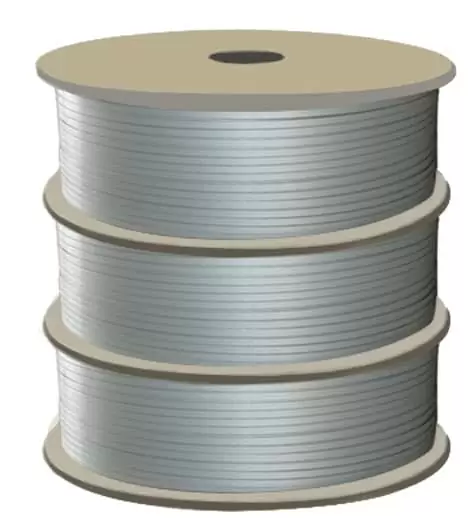

Advantages of oxide film wire
1. The oxide film is not sealed by insulating paint, and the temperature resistance can reach 250¡æ. The heat resistance of the oxide film sealed with insulating paint depends on the temperature index of the insulating paint;
2. High slot full rate, light weight and good radiation resistance.

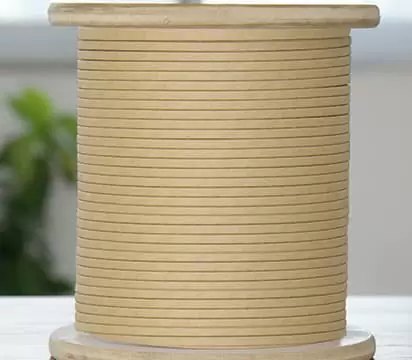

3M paper covered aluminium wire feature :
* High dielectric strength/Excellent therm alstability/Wrapped tightly;
* Paper covered Aluminum wire is a special kind of magnet wires. Its conductors is electrical round aluminum rods which squeeze
and draw by the certain size of mold. And its insulations is special material;
* Our 3M paper covered aluminum wire uses two layers or several layers as the insulation layer;
* The wrapping direction of paper is same. And every layer paper twines conductors continually and compactly without wrinkles;
* Uses for oil-immersed transformers, reactors and other windings;

Aromatic polyimide enameled wire has good heat resistance, softening breakdown resistance, radiation resistance, severe cold resistance and chemical resistance. Among them, many test indicators such as unidirectional scratching, breakdown voltage, and thermal softening are far Far better than ordinary enameled wire.

Kapton insulated aluminium wires are suitable for both HV and UHV applications at temperatures ranging from -269 to 200¡ãC with maximum bakeout temperature of 260¡ãC.
Kapton insulated aluminum wire is designed for use in high & ultra-high vacuum applications. Kapton has high mechanical strength, excellent electrical insulation properties, and low outgassing rates making it ideal for use as an in-vacuum insulator. These wires can be utilized in temperature ranges from 4K to 260¡ãC.

Standards Of Enameled Wire includes
1）IEC 60317 for Europe
2）JIS C3202 for Asia
3）NEMA MW 1000C (inch) or NEMA MW 1000C metric (mm) for North America

Kraft Insulated Copper Stranded Paper Covered Wire refers to the insulation layer of the wire wrapped with cable paper. The paper covered wire insulation has at least 3 layers to wrap the paper tape. When it exceeds 3 feet, the innermost and outermost layers should be covered and wrapped, and the rest can be wrapped around with a gap of no more than 2mm. When the width of the paper tape is 9.5 When mm and above, the gap should not exceed 3mm.

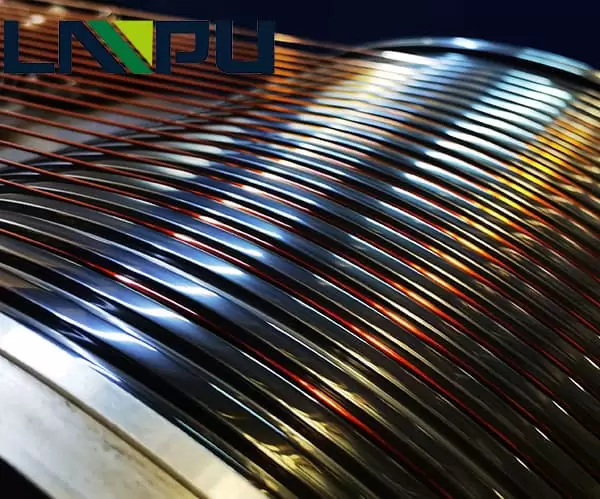

Application of enamel coated magnet wire

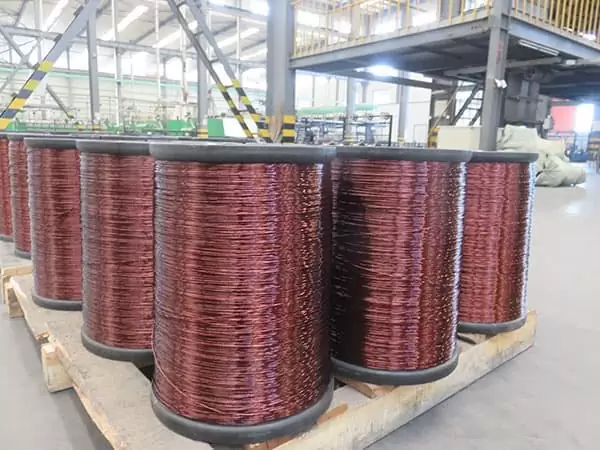

Wire for winding used in electrical equipment is generally called magnet wire. Simplyput,”enamel coated magnet wire is used for interchanging electrical energy with magnetic energy”.Magnet wires are broadly divided into enamelled wire (coating insulation), coveredconductor wire (fiber/film insulation), and combinations thereof.

Nomex covering corresponds to class H insulation is mainly used in the construction of condensers and capacitors. Main application of it is in shielding of cables in high temp. environments (200¡ãC) such as dry type transformers, military and aerospace cables. Nomex covered conductors are more effective in condition where temperature resistance and dielectric strength requirements are high.

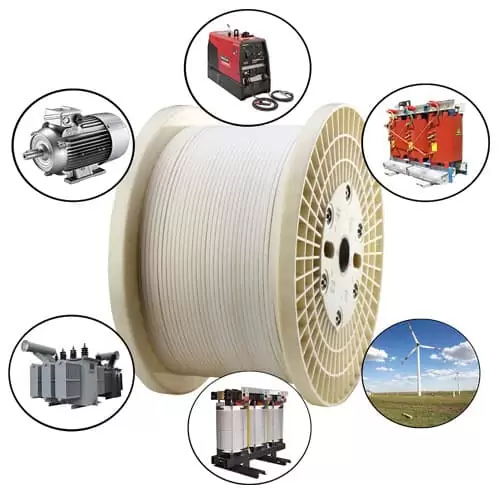

Application of Nomex Paper Covered Aluminum wire :
Mobile Transformer,Traction Transfomers,Pole-mounted distribution transformers,Power substantions,rectifiers,oil-immersed transfomer coil winding.

Winding wires used in electrical equipment are usually called magnetic wires. In other words, “magnetic wires are used to exchange electrical energy and magnetic energy.” Magnetic wire is roughly divided into enameled wire (insulation coated) and coated wire (fiber/film insulation) and their combinations. The two types of magnetic wires and their performance are very different. ASTM (American Society for Testing and Materials) B193, no more than 0.017241 ohm (square millimeter/meter), the film or coating should meet the latest version of ANSI, ASTM or NEMA applicable standards, and modify the specified resin. The modified resin is Chemically changed resin, or containing one or more additives to retain the basic chemical characteristics of the original resin to enhance certain performance or application characteristics, the coated conductor needs to meet all the required test requirements of the appropriate NEMA standard (UL certification project) .

1060 Transformer Aluminum Strip Product Description:
060 transformer aluminum belt is a special purpose aluminum belt product produced for transformers. It uses high-purity aluminum substrate and aluminum deep-processed products formed by slitting aluminum coils with an aluminum content of more than 99.60%. The raw material of transformer aluminum strip is high-purity aluminum, which is rolled into thin sheet aluminum coils of different thicknesses and widths by a cold rolling mill, and then longitudinally slitted into aluminum strips of different widths by a slitting machine according to the application. It is an important raw material in industry. The main processing equipment of 1060 transformer aluminum strip is slitting unit, which can be divided into required length and width according to needs. Usually the transformer aluminum strip is slit according to the actual needs of the user, which can reduce waste, reduce processing procedures (without cutting), and save raw material costs.

Springiness of Round Enameled Wire is one of important performance in accordance with the IEC standards to ensure the quality of Round Enameled Wire. How to improve the performance, the article introduce how to operate the enameling machine, during the manufacturing process of enameled wire, the worker shoule be focus on some points.

The samples for tensile and thermal shock testing were 3 pieces of 254mm enameled wire.

First pull the enameled wire to the required elongation at a rate of 3.7-4.6 m/sec, then wrap the jerked sample around the mandrel, and then put the wrapped sample into the oven at the specified temperature for 30 minutes. It needs to be suspended in the oven. After leaving the oven, inspect the baked samples for cracking or peeling of the paint film. In this test, the diameter of the mandrel is usually 3 times the diameter of the enameled wire.

The specified temperature of the oven is set according to the temperature specified for the enameled wire of this ANSI Type in the NEMA MW1000 standard, which is usually the temperature grade of the enameled wire +20¡ãC.

Carbon aluminum wire is an aluminum wire for parts manufacturing of various machines.08 and 08F aluminum wire for rolling thin plates, deep-drawing products, oil drums, high-grade enamel products, less demanding carburizing and cyanide parts, welding rods, etc.

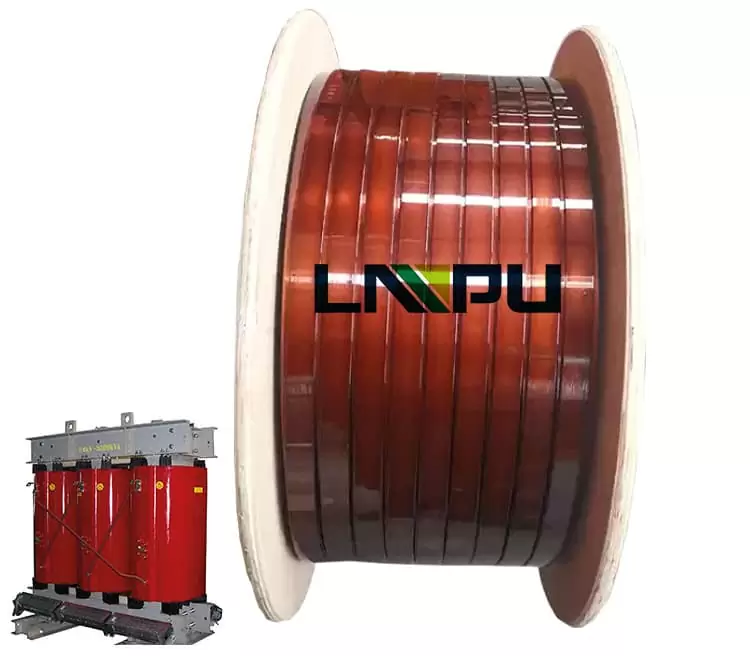

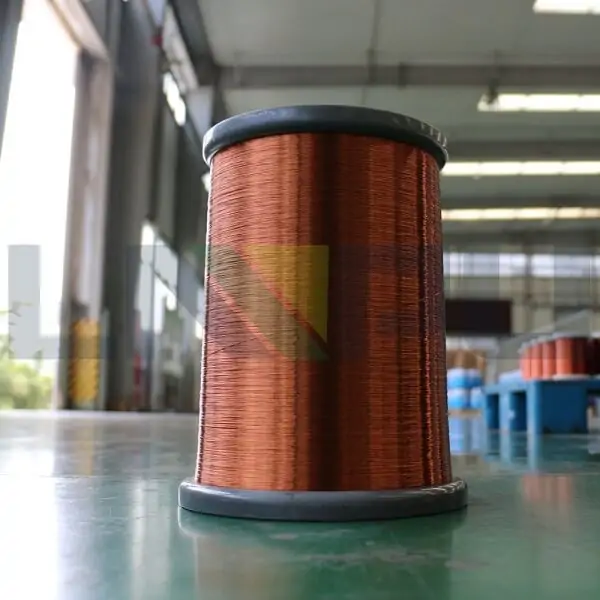

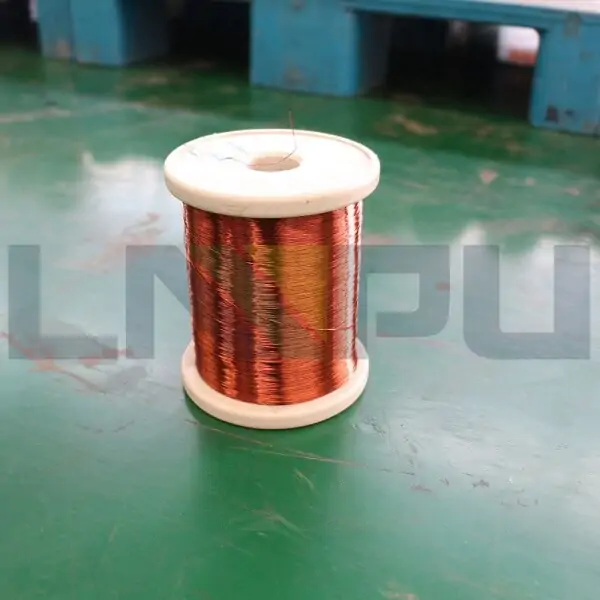

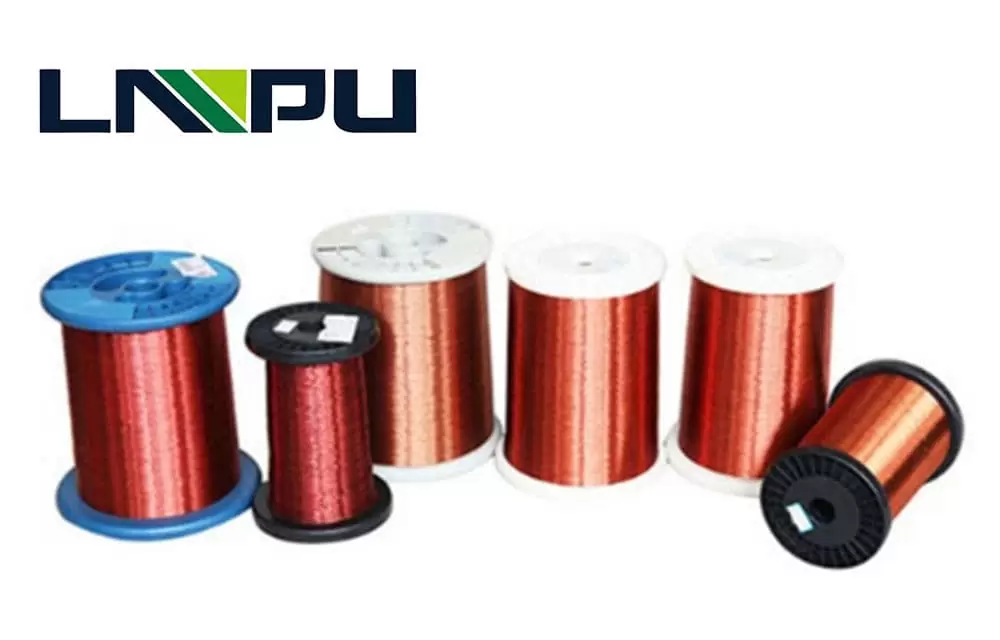

What is called Magnet Wire? The magnetic wire is a copper wire with an enamel (a kind of paint ) coating on it, and used for transformer coils and motor coils. Copper wire is a conductor, like bare copper.

Correspondence table of enameled wire diameter and resistance value
The resistivity of the copper wire ρ= 0.0172, the aluminum wire ρ = 0.0283, the wire resistance calculation formula:
R=ρ×L/S
(L = wire length, unit: meter, S = wire cross section, unit: mm^2)

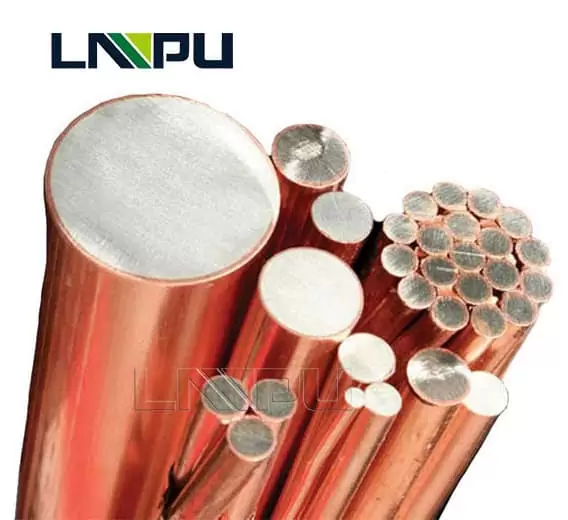

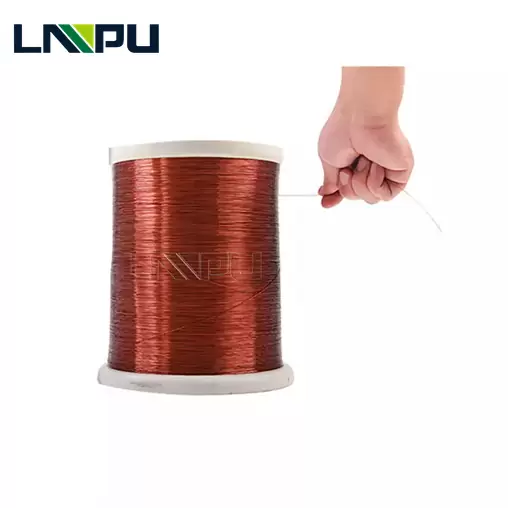

The current mainly passes along the copper-clad aluminum wire on the surface of the wire, which is called the skin effect. The higher the frequency, the more obvious it is. The copper-clad aluminum wire uses this feature to save material. But its resistivity is slightly higher than that of pure copper wire, and the resistivity is also different with the thickness of the copper clad.

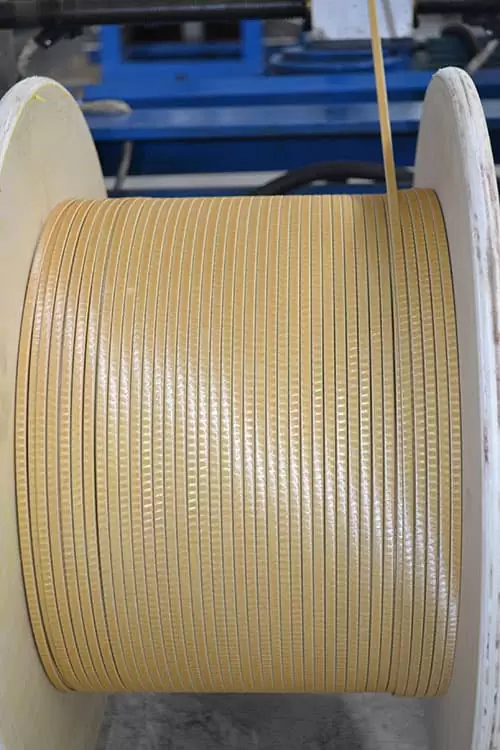

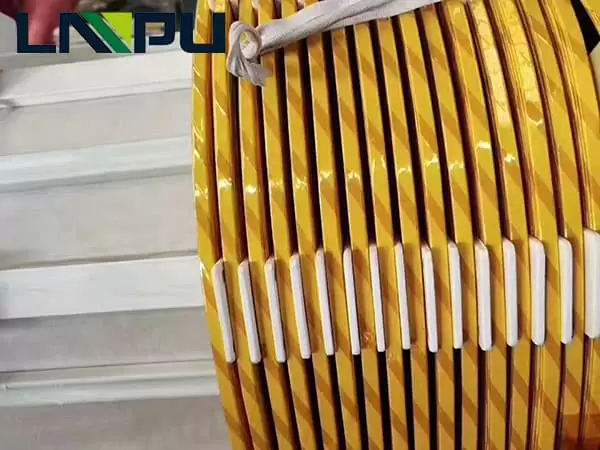

Class F Glass Fibre Insulated Aluminium strips is a high-quality aluminum wire that is evenly wrapped with alkali-free glass fiber. It is impregnated and baked with the required temperature resistance index and compatible bonding paint to make the glass fiber between the glass fiber It is bonded to the conductor as a whole, and the insulating layer has a certain degree of wear resistance, adhesion, flexibility and voltage resistance. This type of winding wire has good thermal shock and overload resistance. At present, the temperature resistance index of this kind of products has three grades: 130, 155, and 180. F grade refers to 155 grade.

Product details :
Place of origin : Henan ,China(Mainland);
Brand name : Signi;
Type : Insulated;
Conductor material : Aluminum;
Conductor type : Solid;
Insulation material : Enameled;
Diameter : 0.025-4.5mm;
Color : Natural;
Thickness : Grade 1/2/3;
Thermal Class : 130-220c;
Application : Motor,transformer,welding machine and generator;

Insulation description: Enamelled / Fibreglass / Nomex / Paper / Mica
Applications: high-voltage coils, relays, transformers, hand tool motors, electronic coils, etc.
Temperature resistance grade: According to the selected bottom insulation wire, there are 130, 155, 180, 200, 220 degrees and other temperature resistance grades

The structure of enameled wire is very simple, consisting of conductor and insulating layer. Because of its high dielectric strength, small footprint and good heat dissipation, it is widely used as a coil winding in motors and transformers.

Application
? Oil-immersed transformer windings, Dry-type transformer, High temperature transformer,
? Motor, transformer, generator, welding machine; Sealed motor, Power tools motor, Auto alternators motor, Magnet coil, High power motor, household electro motors and micro-motors;
? Medium and large electrical motor and transformer windings;
? Power substations, rectifiers, f urnace transformer oil-immersed transformer coil winding;
? Lifting electromagnet, reactors and other low-voltage and high current electromagnetic winding;
? Used in aerospace, submersible motor and high voltage coil, wind turbines, micro-electronics and so on.
Windings with light weight, high conductivity, good heat resistance; Winding used for high frequency signal transmission
Magnetic wire used in High Frequency transformer, common transformer, inductance coils, electrometers.

Thermal Class: 130-220C
Conductor Material: Copper
Standard: IEC,NEMA,GB,JIS
Delivery time: 7-30 Days
Brand Name: LP Magnet Wire
Insulation: PEW, PIW, EIW, AIW, EI/AIW

The main advantages of fiberglass covered wire are:
1. The quality factor Q value is large;
2. Because it is twisted by multiple enameled wire bundles, it has good flexibility and can reduce the skin effect;
3. Because it is composed of polyurethane enameled wire, the dielectric loss angle is small, and it has direct solderability.
The disadvantage is: poor moisture resistance.

Nomex Paper Covered Copper Aluminium Enameled Wire is a kind of electromagnetic wire, which is specially used to manufacture winding coils of various oil-immersed transformers. It has good insulation on the outside and good conductivity on the inside. It is the heart of the transformer.

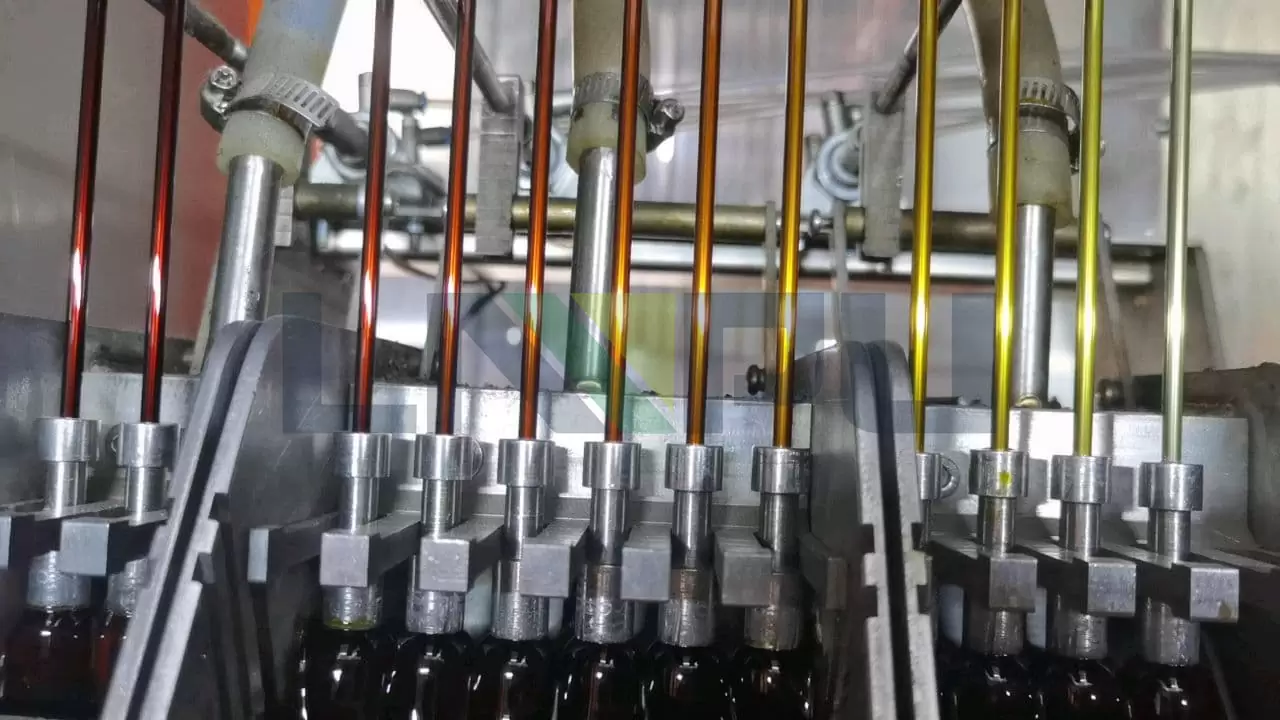

The paint is a process of painting the paint of the enameled wire to form a uniform lacquer layer of a thickness on the metal conductor. This is related to several physical phenomena and painting methods of liquid.

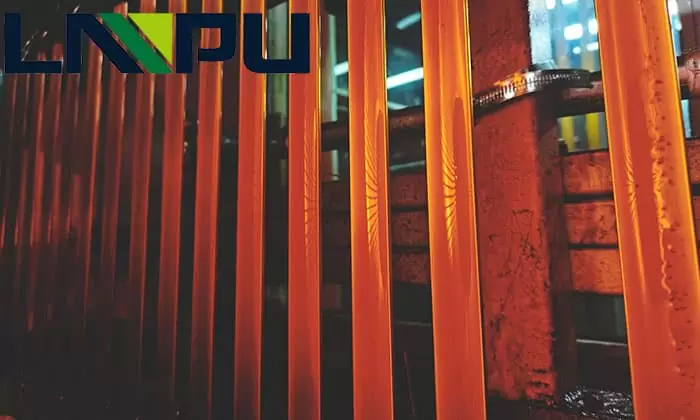

LP Industry is one of leading flat magnet wire suppliers in China, mainly produces copper flat wire enameled and aluminum Enameled rectangular wire which is made of oxygen free copper or electrical aluminum rod, which are drawn or extruded by the specification mould. It is the baked winding wire with multiple-layers of insulating paint after annealing softening treatment. They are mainly used in the windings of electrical equipment such as transformer, reactor and etc.

The electrical insulation system for wires used in generators, electric motors, transformers, and other wire-wound electrical components is divided into different classes by temperature and temperature rise. The electrical insulation system is sometimes referred to as insulation class or thermal classification. The different classes are defined by NEMA, Underwriters Laboratories (UL), and IEC standards.
