Round Enameled Wire is one of round wire, and single wire for using electric field. The testing performance of Round Enameled Wire is important, the application of enameled wire is in accordance with different performance.

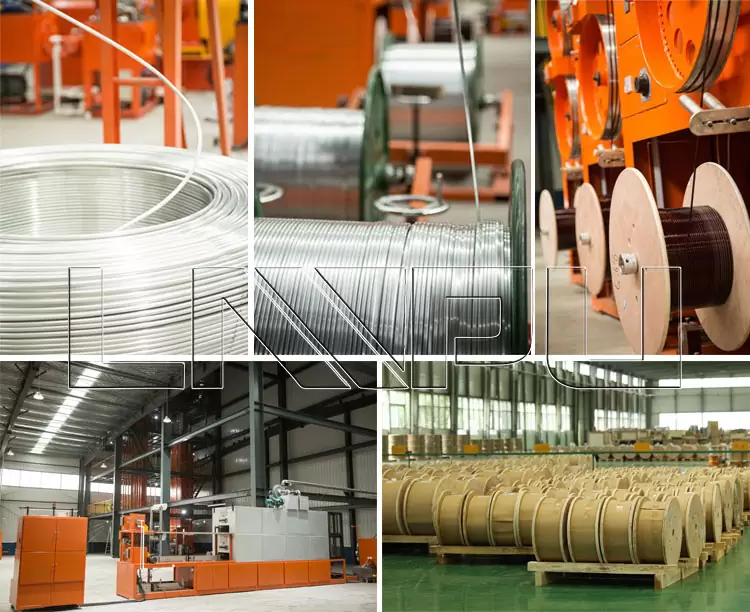

Enamelled Covered Aluminium Wire Production Process

One step :
Take the pure aluminum material drawing into the aluminium rod wire;

Two step :
Through the extrusion production line, take the aluminum rod wire into extruding and coarse drawing operation, then becoming the requirement specification of Bare aluminium wire;

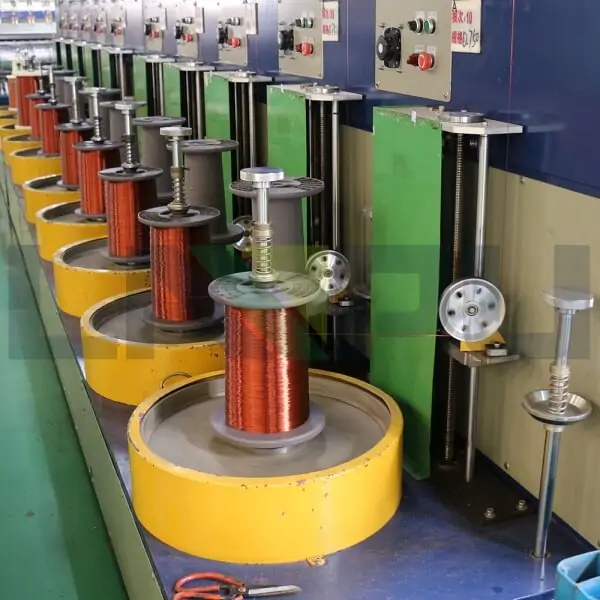

Three step :
Take up the Bare aluminum wire conductor, and inspection the bare wire coil products;

Four step :
Trough the enameled covered production line, taking cleaning¡¢annealing and drying operation , and ready to enameled covered step;

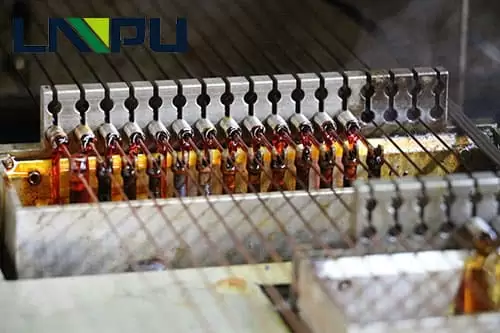

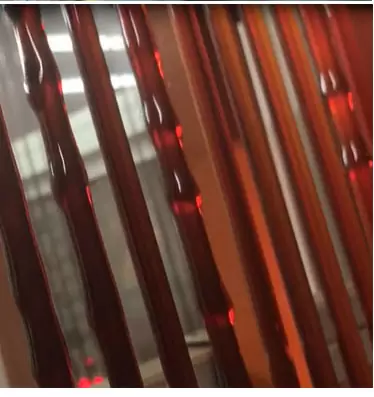

Five step :
Taking into enameling operation, and then for cooling and lubricanting;

Six step :
Through the on-line monitoring equipment, inspecion the quality of enameled wire, and take up the fulfillment products.

Seven step :
Packing the enameled wire products, and placed neatly in warehouse.

Telephone cable is usually thought of only as a communication medium operating at a normal 48 Vdc level. But telephone cable is regularly used by telephone operating companies to supply power to remote telephony equipment such as: PCM (Pulse Code Modulation) repeaters, FDM (Frequency Division Modulation) repeaters, telegraph and various types of control circuits. The normal talk battery voltage is regularly exceeded in the case of long subscriber loops utilizing loop extenders and on dial long line circuits which operate in the 70 to 100 Vdc range. For these applications, the referenced devices are generally current limited to approximately 150 milliamps. In all such cases, normal telephone industry practice usually limits pair-toground applied voltage to 150 Vdc, and pair-to-pair voltage is usually limited to 300 Vdc.

Correspondence table of enameled wire diameter and resistance value
The resistivity of the copper wire ρ= 0.0172, the aluminum wire ρ = 0.0283, the wire resistance calculation formula:
R=ρ×L/S
(L = wire length, unit: meter, S = wire cross section, unit: mm^2)

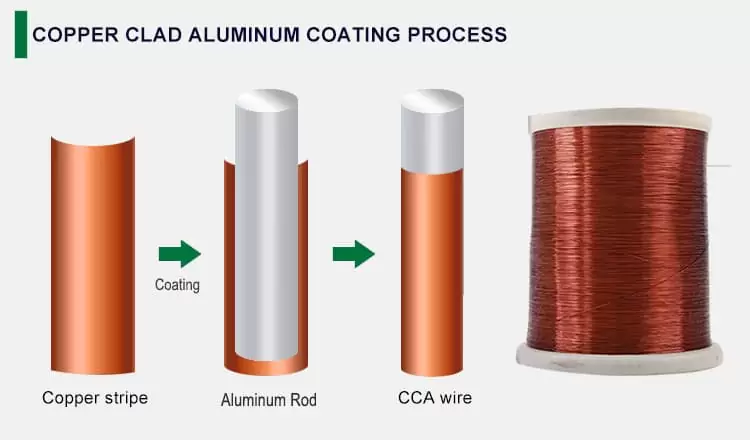

The current mainly passes along the copper-clad aluminum wire on the surface of the wire, which is called the skin effect. The higher the frequency, the more obvious it is. The copper-clad aluminum wire uses this feature to save material. But its resistivity is slightly higher than that of pure copper wire, and the resistivity is also different with the thickness of the copper clad.

In the long-term thermal aging test, three or more temperature points are usually selected for accelerated aging, commonly known as “three-point aging”.

The samples for the aging test are stranded enameled wire pairs. The production of the stranded pairs should meet the requirements of ASTM D2307 or NEMA 1000 standards, including the weight to be applied when making the stranded pairs, the number of twisted turns, the effective length of the stranded area, and The length of the two ends of the twisted pair, etc. When making a twisted pair, the required force and the number of twist turns will vary depending on the diameter of the wire. The effective length of the stranded area has nothing to do with the wire diameter, the effective length is 121¡À6 mm, and the two ends are at least 50 mm long. At least 10 twisted pairs per temperature point and mounted on twisted pair racks for high temperature aging test.

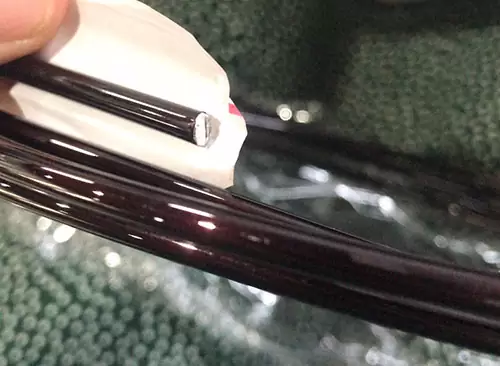

Enameled round aluminum wire is made of oxygen free rod or electrical aluminum rod by a certain size of the die drawing or extrusion of the wire, the insulation paint through many times of the winding wire. Mainly used in winding of transformers, motors, generators, and various electrical devices.

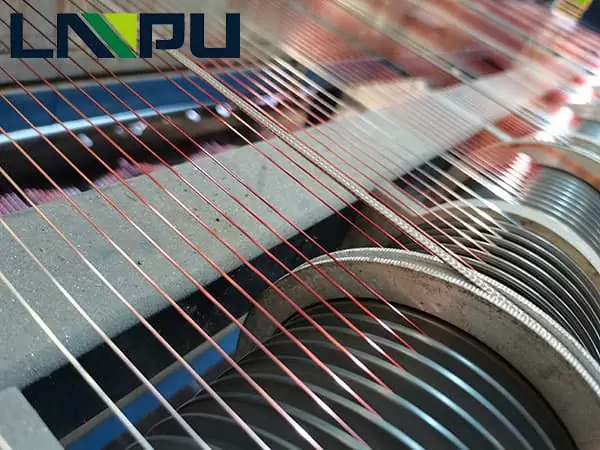

Enameled wire production water also has many uses, and similarly, the requirements for water quality are also different. According to the water quality requirements of the purpose of use, it can be divided into: annealing furnace sealing water, equipment cooling water, lubricant manufacturing water, etc.

1. Acetal enamel wire.
2. Polyester enameled wire
3.Pu enamel wire.
4.Polyester iminelin wire
5.Polyimide enameled wire
6. Polyamide imide enameled wire

How to Choose your Wire Manufacturers? You want to choose competitive wire manufactuer, should think about the
Factory certificate
Wire specifications
Copper or aluminum pure

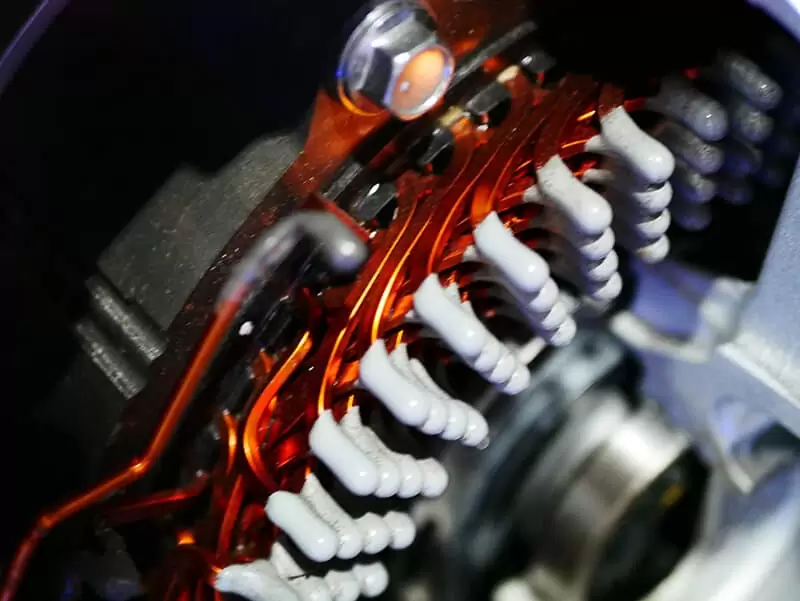

The difference between enameled aluminum wire and enameled copper wire of vibration motor: the resistivity of copper wire is 0.017, and the resistivity of aluminum wire is 0.028. The cross-sectional ratio of copper wire and aluminum wire interchange is 0.79:1, and six square copper wires are equivalent to ten square aluminum wires. The diameter of the aluminum wire is thicker than that of the copper wire, and the same aluminum wire of the stator slot will not fit.

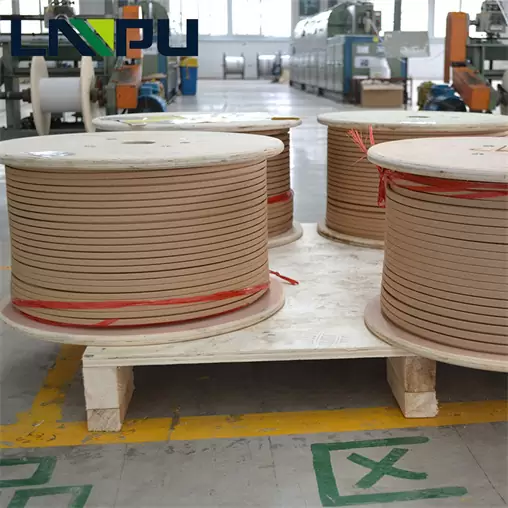

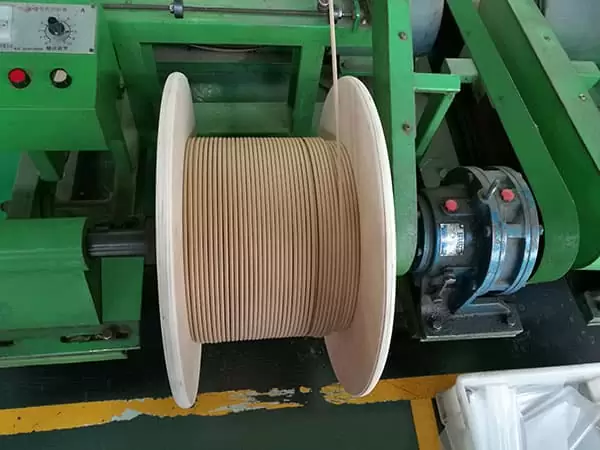

The paper covered wire is a type of enameled wire that is extruded or pulled by an oxygen-free copper rod or an electrical circular aluminum rod, and then annealing the wire, and then winding two layers or two layers of insulating on the copper (aluminum) conductor.Paper (including telephone paper, cable paper, high voltage cable paper, turns], suitable for oil immersion transformer coils and other similar electrical windings.Electrical bare copper (aluminum) wires produced by extrusion process are the most ideal materials for the production of cable paper wraps.

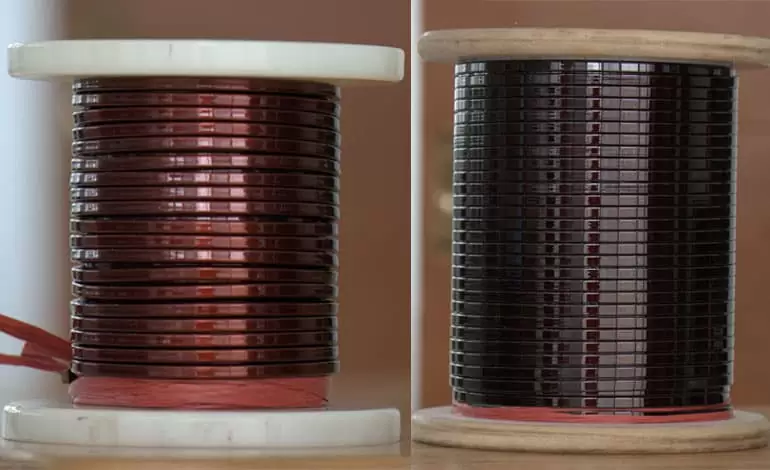

The heat resistance class of enameled wire is the ambient temperature where the enameled wire can work normally for a long time (above 20000h).

Another important usage of copper is in manufacturing wire gauges that are largely use in measuring the diameter of wire.
Similarly aluminium is also largely use for electrical application.

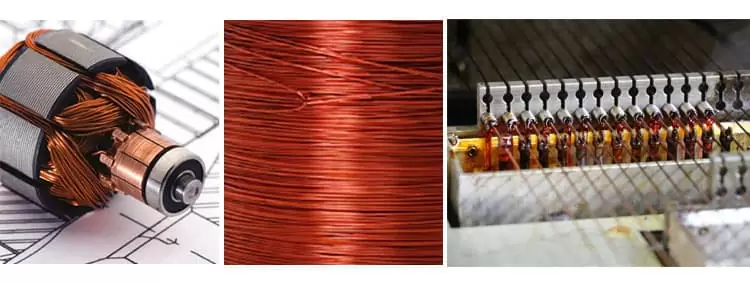

Enameled wire is a main type of magnet winding wire. It is composed of a conductor and an insulating layer. After the bare wire is softened by annealing, it is painted and baked many times. However, it is not easy to produce products that not only meet the requirements of the standard, but also meet the requirements of customers. It is affected by the quality of raw materials, process parameters, production equipment, environment and other factors. Therefore, the quality characteristics of various enameled wires are different, but they all have Mechanical properties, chemical properties, electrical properties, and thermal properties

1. Mechanical functions: including elongation, rebound angle, softness and adhesion, paint scraping, tensile strength and other items.
(1) Elongation reflects the plastic degeneration of the material and is used to check the ductility of the enameled wire.
(2) The rebound angle, the softness reflects the elastic deformation of the material, and is used to check the softness of the enameled wire.
¢ÇThe durability of the paint film includes winding and stretching, that is, the promised tensile deformation of the paint film without cracking when the conductor is stretched and deformed.
(4) The adhesion of the paint film includes snap-off and peeling. First, check the adhesion of the paint film to the conductor.
(5) The scratch resistance test of the paint film reflects the strength of the paint film against mechanical scratches.

Glass-fiber covered aluminum magnet wire used to have weak coating strength (abrasion resistance, shock resistance, and flexibility). However, that disadvantage has been significantly improved recently by refining material selection and manufacturing methods. The demand for glass-fiber covered aluminum magnet wire is increasing as the wires have excellent uniformity and electrical properties under high temperatures and humidity.

Type: insulated
Delivery time: 7-30 Days
Conductor Material: Copper
Standard: IEC,NEMA,GB,JIS
Diameter: 0.016mm–9.2mm
Brand Name: LP Magnet Wire
Bobbin: 30kg/50kg Wooden Spool

Features of Aluminum Enameled Electric Wire 1.5mm For Moxico
1) Excellent bending performance
2) High flexibility of enamel
3) Good wear resistance
4) High mechanical properties
5) Higher thermal performance
6) Good resistance to refrigerants and Freon
7) Suitable for windings subjected to continuous high temperature and mechanical stress
8) Good chemical resistance
9) Excellent mechanical and chemical properties

Speaking of the copper enameled wire, I believe everyone should know. Today, we introduce you to a wire, ie the copper paint package. Let us simply look at the transportation and preservation of copper-clad aluminum wires, because if many wires are transported incorrect, it is very likely to be used, so let us simply understand the transportation and preservation of the copper paint wire, so you can be here.

Glass-fiber covered aluminum magnet wire used to have weak coating strength (abrasion resistance, shock resistance, and flexibility). However, that disadvantage has been significantly improved recently by refining material selection and manufacturing methods. The demand for glass-fiber covered aluminum magnet wire is increasing as the wires have excellent uniformity and electrical properties under high temperatures and humidity.

The wire drawing metal processing technology can form fine lines on the surface of the metal material, which makes the metal more textured, and is used as a decoration by users and is well-loved. In the production process, the drawing lubricating fluid is indispensable in the drawing metal processing technology. It is widely used in the lubrication of the middle drawing, small drawing and micro drawing of enameled copper wire. So how to choose this kind of drawing fluid?

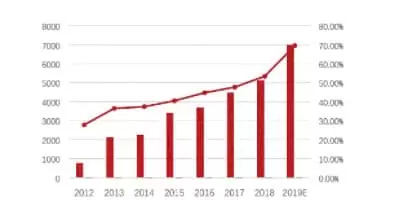

Painted wire (electromagnetic wire) is the base and key material of the motor, electrical, household appliance, electronics, instrumentation, electromagnetic windings. With the rapid development of my country’s home appliance industry, electronic information, automobile and other industries, the scale of electromagnetic wire production enterprises expanded, and the country has developed from thousands of tons to the 10,000-tonnes. The rapid development of industrial appliances, household appliances, automotive and other industries, bringing electromagnetic wires and markets, but at the same time, rapid advancement of technology has made a growing demand for electromagnetic wires.

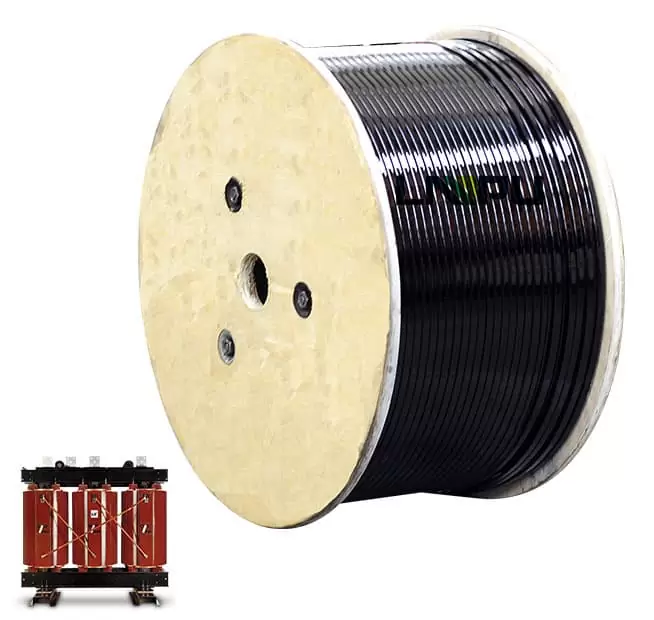

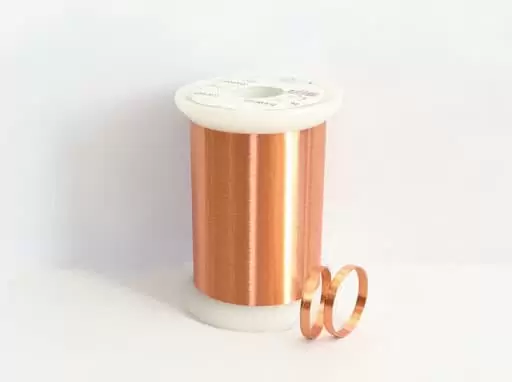

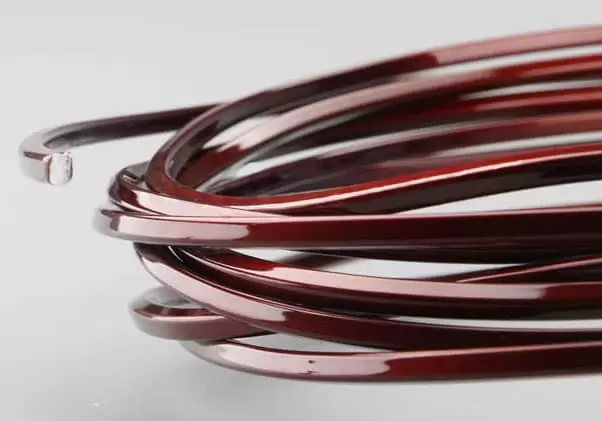

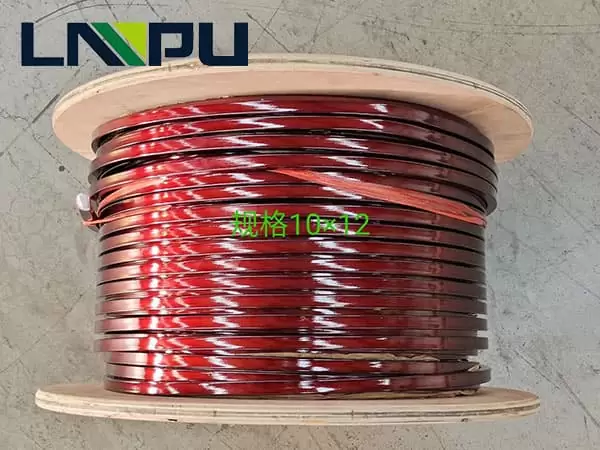

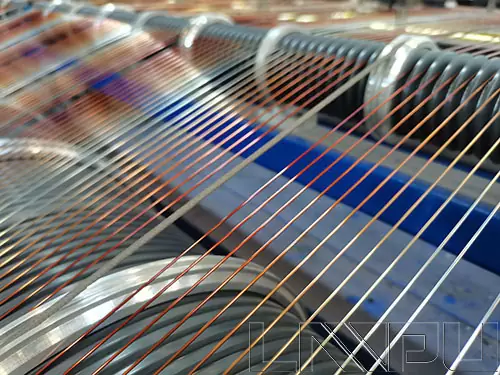

LP Industry is one of leading flat magnet wire suppliers in China, mainly produces copper flat wire enameled and aluminum Enameled rectangular wire which is made of oxygen free copper or electrical aluminum rod, which are drawn or extruded by the specification mould. It is the baked winding wire with multiple-layers of insulating paint after annealing softening treatment. They are mainly used in the windings of electrical equipment such as transformer, reactor and etc.

In theory, any enameled wire can realize the mutual conversion between electric energy, magnetic energy and kinetic energy. However, the use of enameled wire has a processing process, and electrical products also have different working environments. Therefore, in the selection of enameled wire And when substituting, the characteristics of various enameled wires must also be considered.

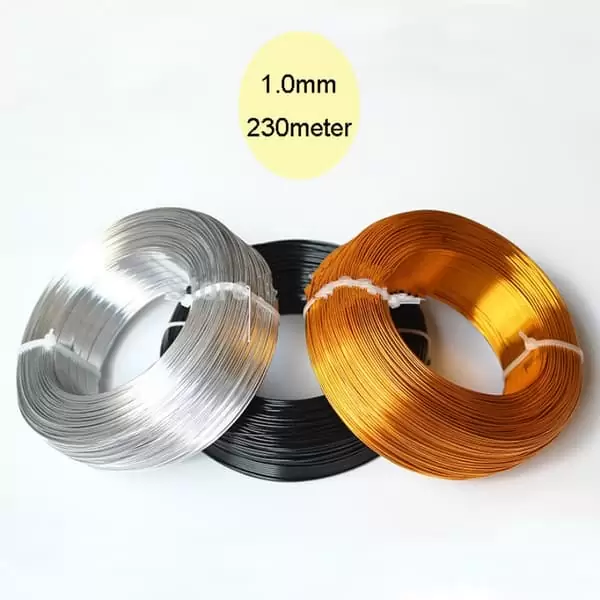

High Temperature Aluminum Magnet Wire (Anodized aluminium wire) belongs to the special electromagnetic wire and the insulation layer is the aluminum oxide . Because of no thermal aging phenomenon, it can be used as insulation level of class 220.
The insulation layer of such product is thin, high temperature resistance and insulation performance stability,which is the best choice for low voltage winding wires with producing high temperature, poor environment, heat dissipation difficulty and so on.
It can widely be used in electromagnetic industries at home and abroad.

enameled aluminum wire is composed of aluminum conductor and insulation materials, which is insulated with a thin film or coating and creates a magnetic field when the wire is would in a coil and power is applied. Aluminum Conductor is main type of enameled wire.

The main advantages of fiberglass covered wire are:
1. The quality factor Q value is large;
2. Because it is twisted by multiple enameled wire bundles, it has good flexibility and can reduce the skin effect;
3. Because it is composed of polyurethane enameled wire, the dielectric loss angle is small, and it has direct solderability.
The disadvantage is: poor moisture resistance.

The enamel wire is a wire having an insulating layer, which is a transformation of electromagnetic energy in a winding form, also known as a winding wire.

1. Conductor resistance ¡ª The resistance of a conductor is proportional to its length and inversely proportional to its cross-sectional area.
2. Conductivity¡ªBased on the resistance 1/58ohm (0.017241 ohm) of a standard soft copper wire with a length of 1m and a cross-sectional area of 1mm2 at 20¡æ, it is called 100% conductivity. The greater the resistance, the lower the conductivity, and the two are inversely proportional.
3. Bending resistance¡ªfix one end of the single wire, add weight to the other end to make it vertically downward, and then bend it back and forth 180 times until the wire breaks. The more bending times, the stronger the bending resistance.
4. Tensile breaking force¡ªthe maximum load weight or force applied to the specimen to break it during a tensile test.
5. Tensile strength¡ªthe breaking force per unit area to bear when the sample is broken during the tensile test.
6. Elongation ¡ª the ratio of the length of the sample after being stretched until it breaks to the original length at the specified standard distance. Conductors have different impedances at different temperatures.
Generally, 20¡ãC or 25¡ãC is the standard. The higher the temperature, the greater the impedance.

Application of enamel coated magnet wire
Wire for winding used in electrical equipment is generally called magnet wire. Simplyput,”enamel coated magnet wire is used for interchanging electrical energy with magnetic energy”.Magnet wires are broadly divided into enamelled wire (coating insulation), coveredconductor wire (fiber/film insulation), and combinations thereof.
